Diaphragm Type: DN32-1 50mm

Piston Type: DN32- 1000mm

Working Pressure: 10-25 bar

1.0MPa 1.6MPa 2.5MPa

Sealing Test: 1.1MPa 1.76Mpa 2.75mpa

Shell Test: 1 5MPa 2.4MPa 3.75MPa

Opening and Closing Mode: normally open and normally closed explosion-proof

Applicable Temperature: ≤ 80C

Opening Pressure: ≥ 0.05Mpa

Voltage: AC 110V 220V 20W

DC 12V 24V 50-60Hz

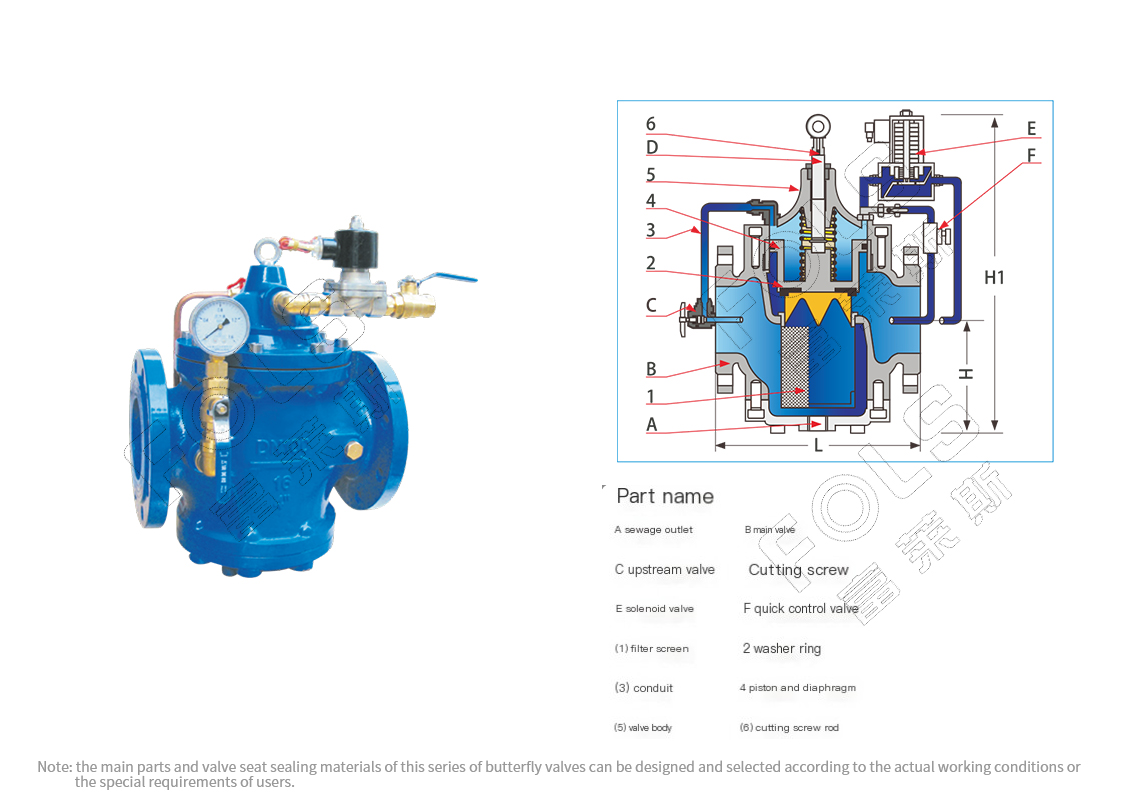

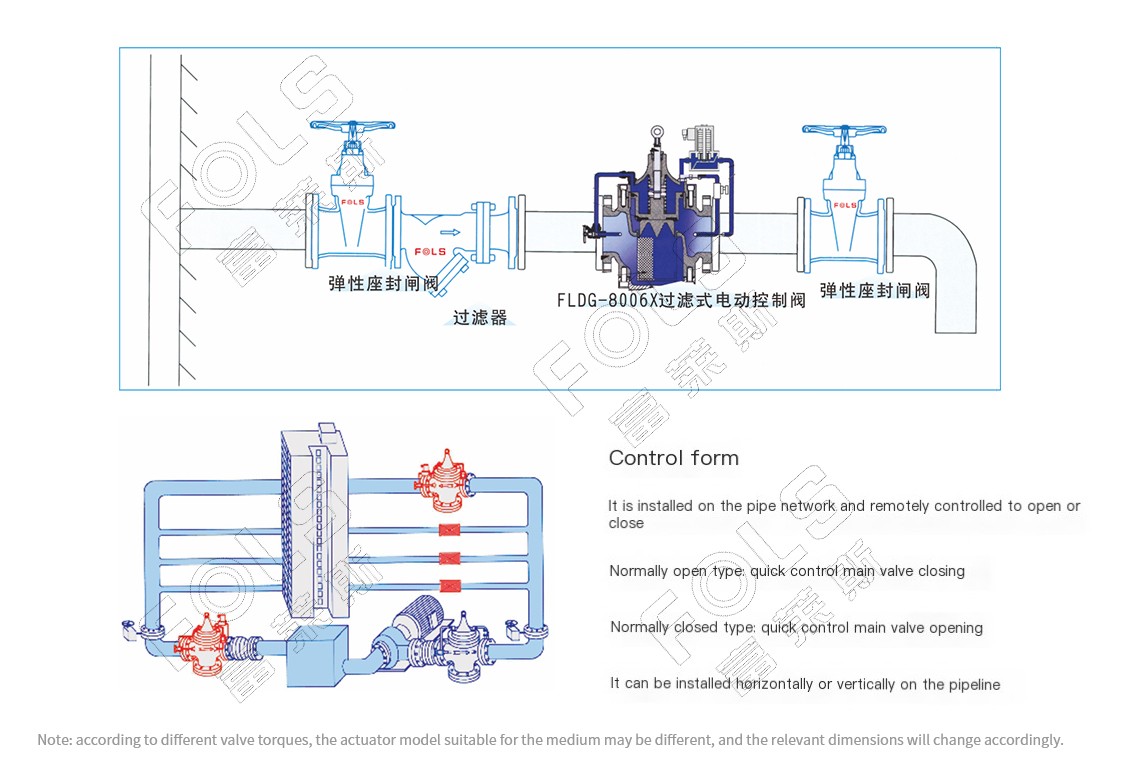

FLDG8006X filter type electric control valve is a multifunctional hydraulic electric control valve with auxiliary functions such as filter screen, intercepting screw rod, sewage outlet, electric control, etc., which is installed in circulating pipeline, air conditioning system, heating, water supply system, automation system, and fire pipe network. Through electrical remote control, the opening and closing of valves can be controlled, which can replace large electric butterfly valves, gate valves and 300X control valves.
