Nominal pressure (MPa)

Test pressure 0.6 1.0 1.6

Shell strength test 0.9 1.5 2.4

Sealing test (liquid) 0.66 1.1 1.76

Sealing test (gas) 0.5~0.8 MPa

Applicable medium Water, steam, gas, dust, oil, nitric acid, acetic acid, alkali, etc.

Applicable temperature ≤200℃

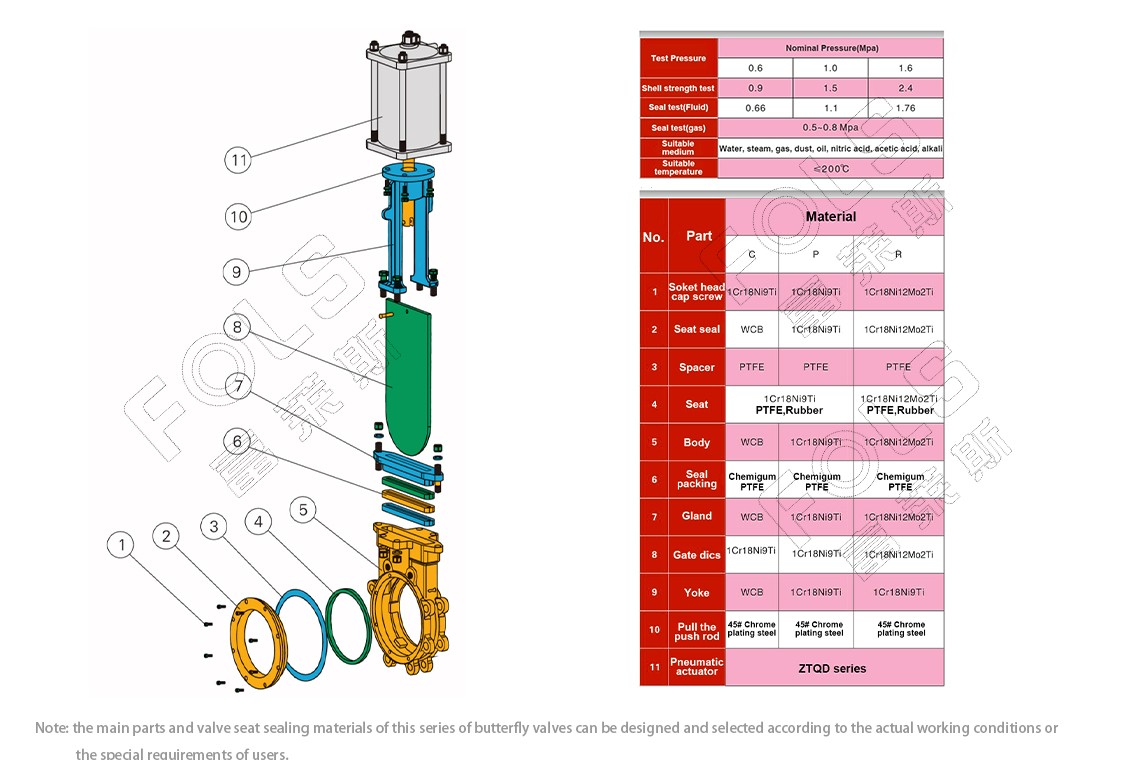

Pneumatic knife-type gate valve, the full-circle DC channel design does not store slag and does not block. The bottom end of the knife plate is processed into a blade shape, which has the function of cutting off soft materials such as fiber, pulp and wood pulp, and has a good opening and closing function at the same time. .The valve plate is made of stainless steel, finely ground and polished to obtain the best sealing effect. Compact design, small footprint, light weight, easy installation, perfect wear resistance and anti-blocking measures, easy maintenance, convenient use and long life, and can be arbitrarily Select the drive unit.
